Processor

Up to two 3rd Generation Intel^® Xeon^® Scalable processors with up to 32 cores per processor
Air cooled

Operating System

Canonical Ubuntu Server LTS
Citrix Hypervisor
Microsoft Windows Server with Hyper-V
RedHat Enterprise Linux
SUSE Linux Enterprise Server
VMware ESXi

Chipset

Intel C620A series chipset

Memory*

DIMM Speed
Up to 3200 MT/s

Memory Type
RDIMM

Memory Module Slots
16 DDR4 DIMM slots

Maximum RAM
RDIMM 1 TB

Storage

Front Bays
0 drive bay
Up to 4 x 3.5-inch SAS/SATA (HDD/SSD) max 64 TB
Up to 8 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 61.44 TB
Up to 10 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 76.8 TB

Rear bays
Up to 2 x 2.5-inch SAS/SATA (HDD/SSD) max 15.36 TB

Storage Controllers

Internal Controllers
PERC H355, H345, PERC H745, PERC H755, PERC H755N, HBA355I

External Controllers
PERC H840, HBA355E

Software RAID
S150

Internal Boot
Boot Optimized Storage Subsystem (BOSS-S2): HWRAID 2 x M.2 SSDs 240 GB or 480 GB
Internal Dual SD Module or Internal USB

Security

Cryptographically signed firmware
Secure Boot
Secure Erase
Silicon Root of Trust
System Lockdown (requires iDRAC9 Enterprise or Datacenter)
TPM 1.2/2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ

Management

Embedded / At-the-Server
iDRAC9
iDRAC Service Module
iDRAC Direct
Quick Sync 2 wireless module

Consoles
Open Manage Enterprise
Open Manage Power Manager plugin
Open Manage Support Assist plugin
Open Manage Update Manager plugin

Mobility
Open Manage Mobile

Tools
RACADM CLI
iDRAC RESTful API with Redfish
IPMI
System Update Utility
Update Catalogs

Open Manage Integrations
BMC True sight
Microsoft System Center
RedHat Ansible Modules
VMware vCenter and v Realize Operations Manager

Open Manage Connections
IBM Tivoli Netcool/ OMNIbus
IBM Tivoli Network Manager IP Edition
Micro Focus Operations Manager
Nagios Core
Nagios XI

Power Supplies

600W Platinum 100–240 VAC or 240 VDC, hot swap redundant
700W Titanium 200–240 VAC or 240 VDC, hot swap redundant
800W Platinum 100–240 VAC or 240 VDC, hot swap redundant
1100W DC/-48–(-60) V
1100W Titanium 100–240 VAC or 240 VDC, hot swap redundant
1400W Platinum 100–240 VAC or 240 VDC, hot swap redundant
1800W Titanium 200–240 VAC or 240 VDC, hot swap redundant

Ports

Network Options
2 x 1 GbE LOM and 1 x OCP 3.0

Front Ports
1 x Dedicated iDRAC Direct micro-USB
1 x USB 2.0
1 x VGA

Rear Ports
1 x USB 2.0
1 x USB 3.0
1 x Serial (optional)
2 x Ethernet
1 x VGA

Internal Ports
1 x USB 3.0 (optional)

Slots

PCIe
Up to 3 x PCIe Gen4 slots

Video Card
1 x VGA

Bezel

Optional LCD bezel or security bezel

Form Factor

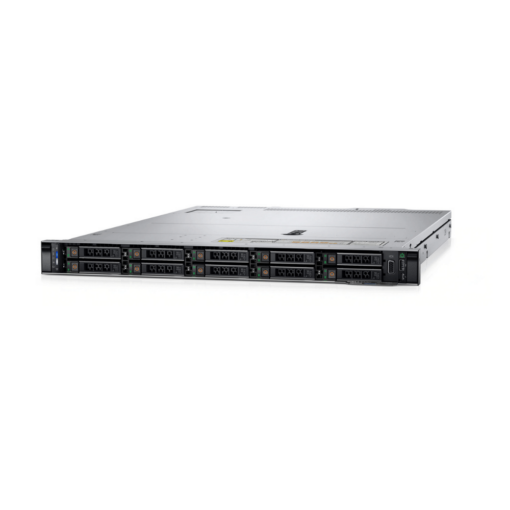

1U rack server

Dimensions & Weight

Height
86.8 mm (3.41 inches)

Width
482.0 mm (18.97 inches)

Depth
734.95 mm (28.92 inches) – without bezel
748.79 mm (29.47 inches) – with bezel

Weight
Max 18.62 kg (41.05 lbs.)

Rack Support

ReadyRails II sliding rails with optional cable management arm (CMA) and strain relief bar (SRB) for 4-post racks.
Combo (Drop-in/Slide-in) rails with optional CMA and SRB for 4-post racks.
ReadyRails static rails for 4-post and 2-post racks.

Recommended Support

Choose Dell ProSupport Plus for critical systems or Dell ProSupport for premium hardware and software support for your PowerEdge solution. Consulting and deployment offerings are also available. Contact your Dell representative today for more information. Availability and terms of Dell Services vary by region.
