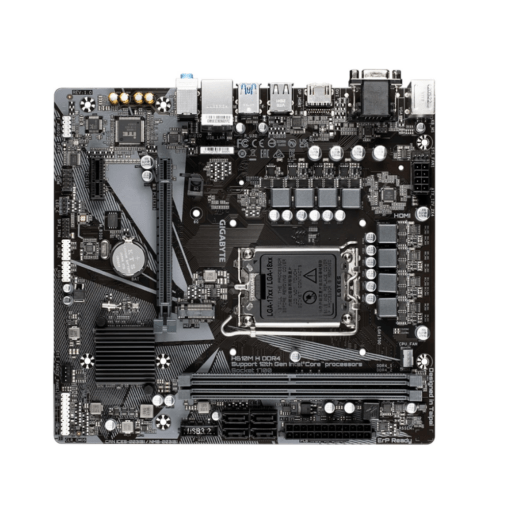

GIGABYTE H610M H DDR4 (Intel Core 12th Gen, 64GB RAM, Micro ATX Motherboard, LGA 1700 Socket)

1. LGA1700 socket: Support for 12th Generation Intel Core, Pentium Gold and Celeron Processors*
2. L3 cache varies with CPU

1. Support for DDR4 3200/3000/2933/2666/2400/2133 MHz memory modules
2. 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory
3. Dual channel memory architecture
4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
6. Support for Extreme Memory Profile (XMP) memory modules

1. Realtek Audio CODEC
2. High Definition Audio

1. 1 x PCI Express x16 slot, running at x16
2. 1 x PCI Express x1 slot

1. 1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 3.0 x4/x2 SSD support)
2. 4 x SATA 6Gb/s connectors

1. 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
2. 4 x USB 2.0/1.1 ports on the back panel

Chipset+USB 2.0 Hub:

1. 4 x USB 2.0/1.1 ports available through the internal USB headers

• Support for Windows 11 64-bit
• Support for Windows 10 64-bit
